Lindsay Engraving & Tools 45 Year History -- Made in USA --
Click to Enlarge Photos

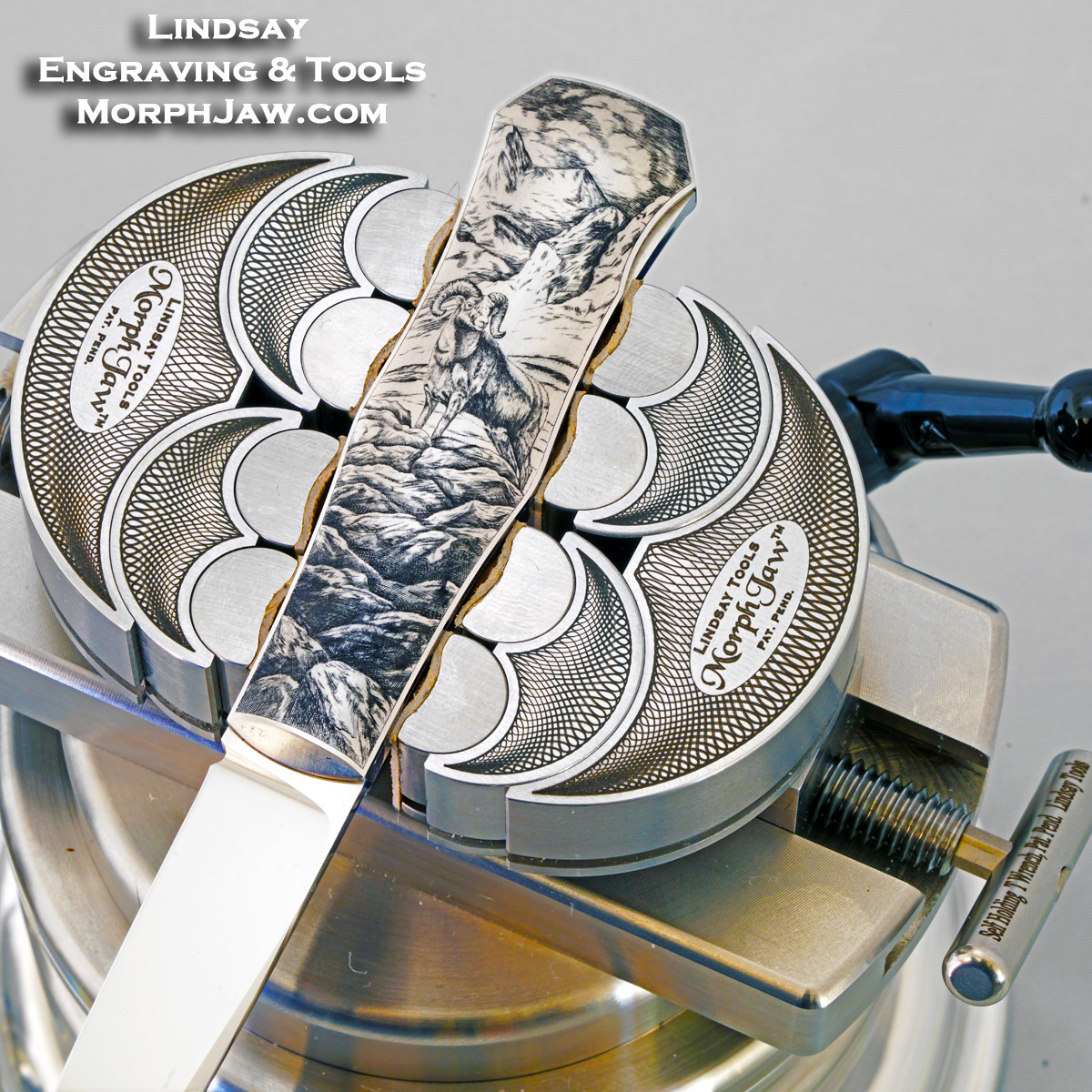

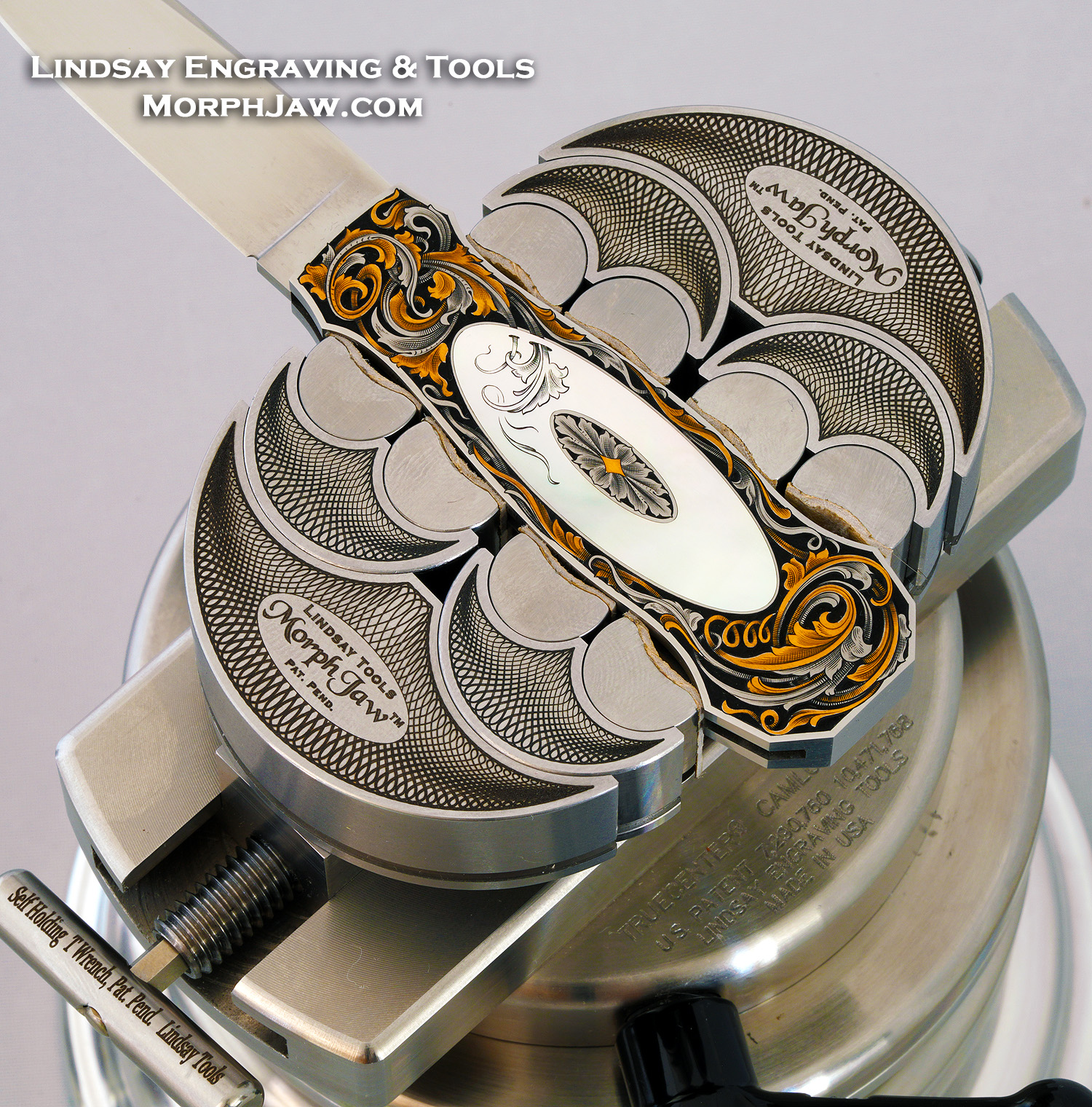

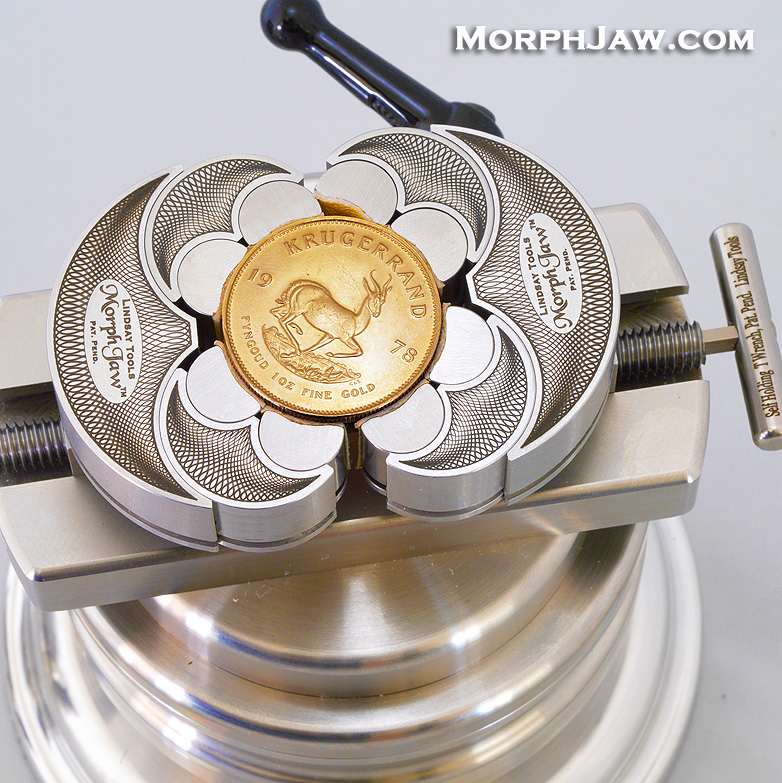

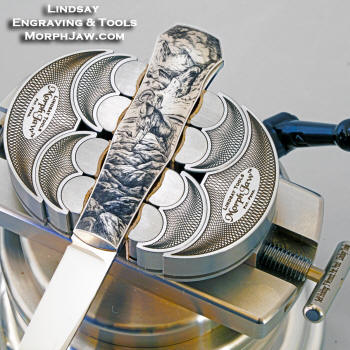

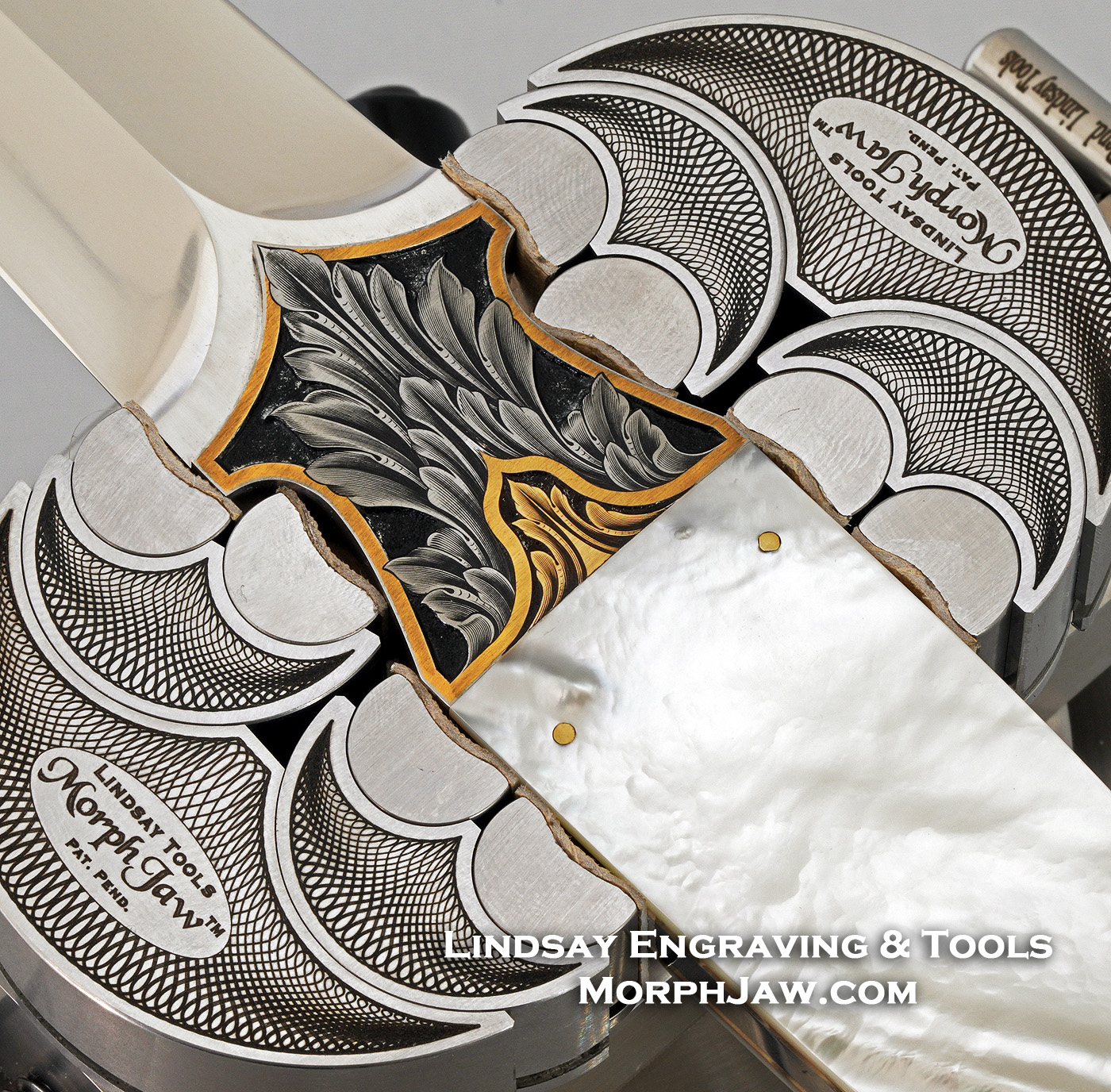

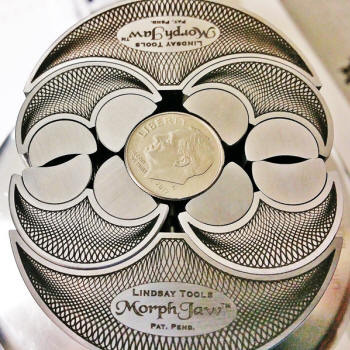

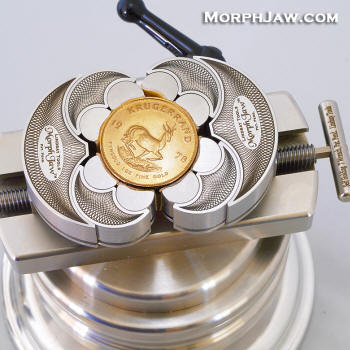

 On PalmControl CamLock vise |

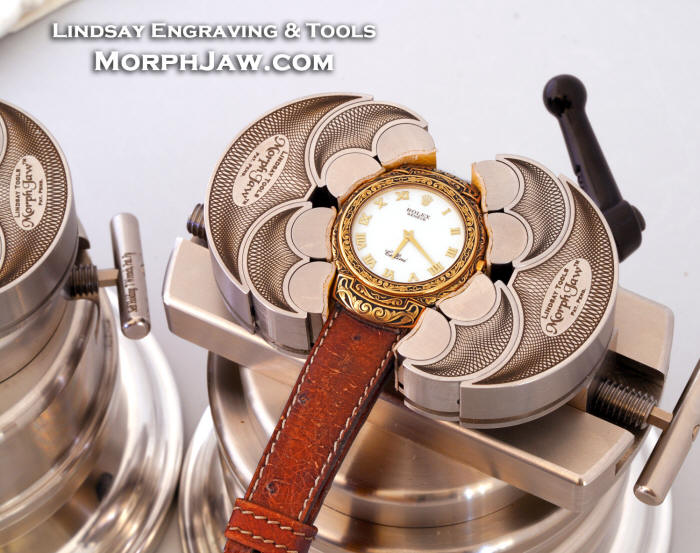

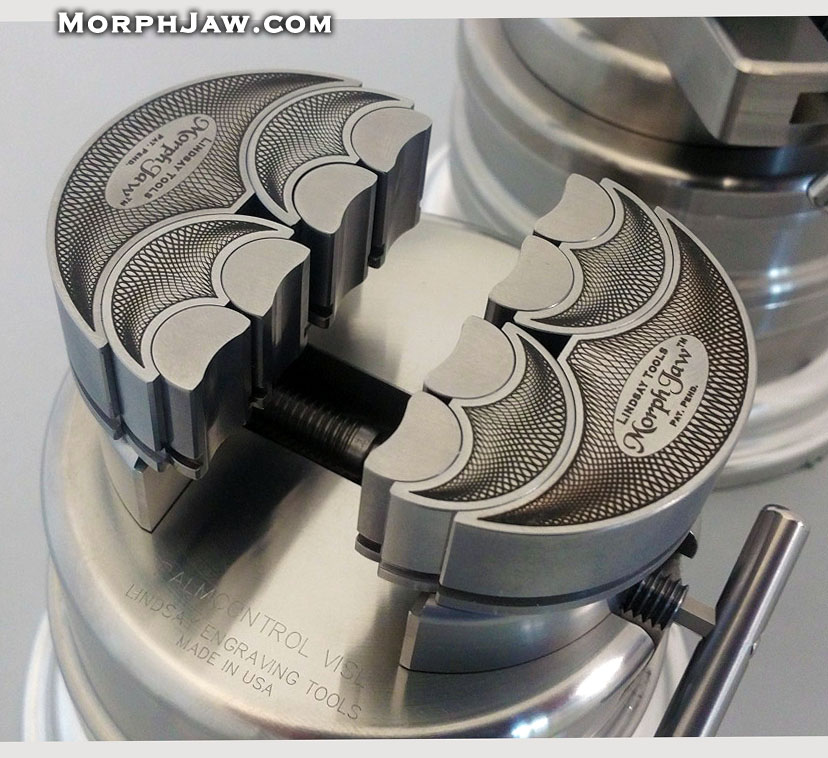

 On PalmControl vise |
 On PalmControl vise |

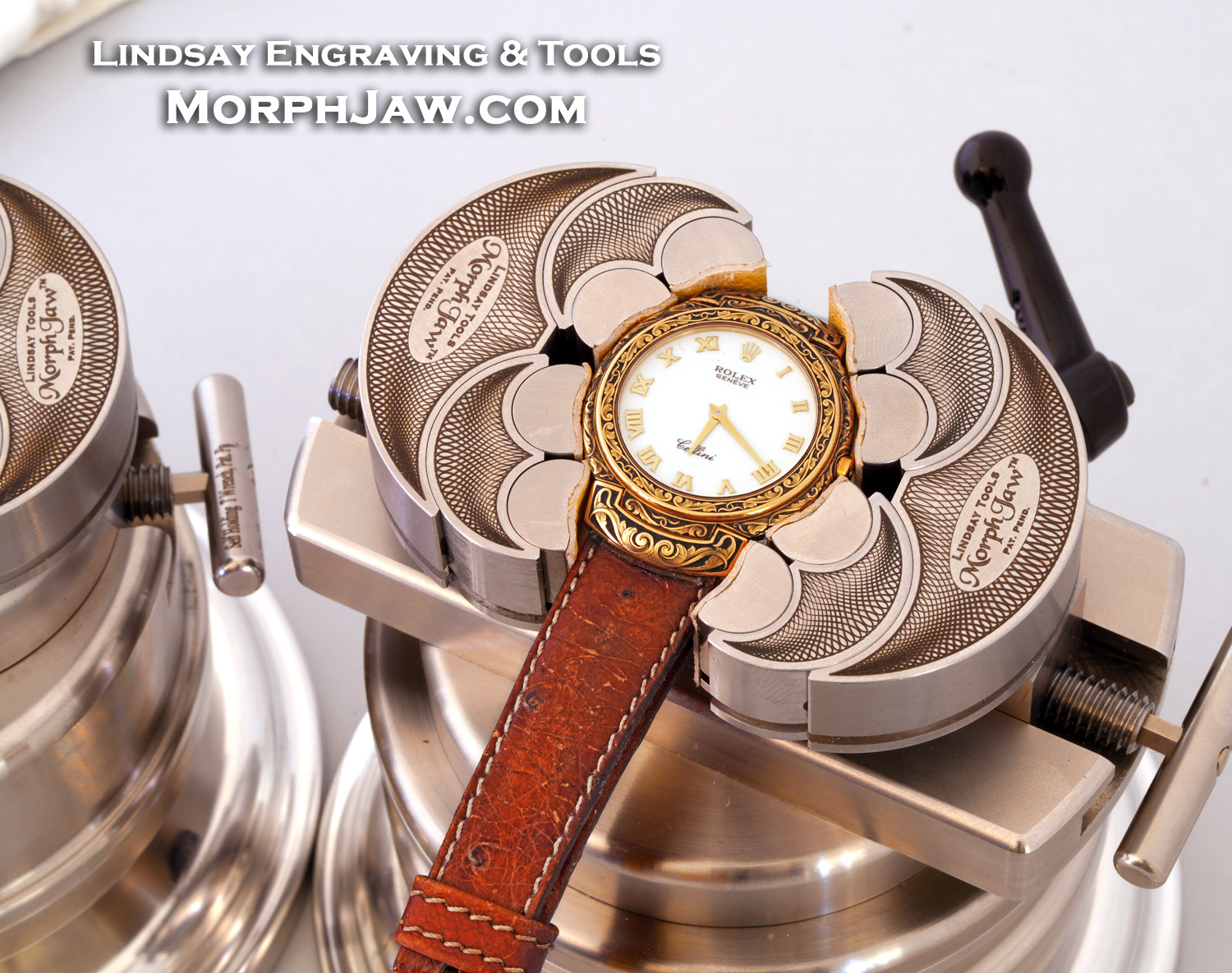

 On PalmControl CamLock vise |
 On PalmControl CamLock vise |
 On PalmControl CamLock vise |
 On PalmControl vise |

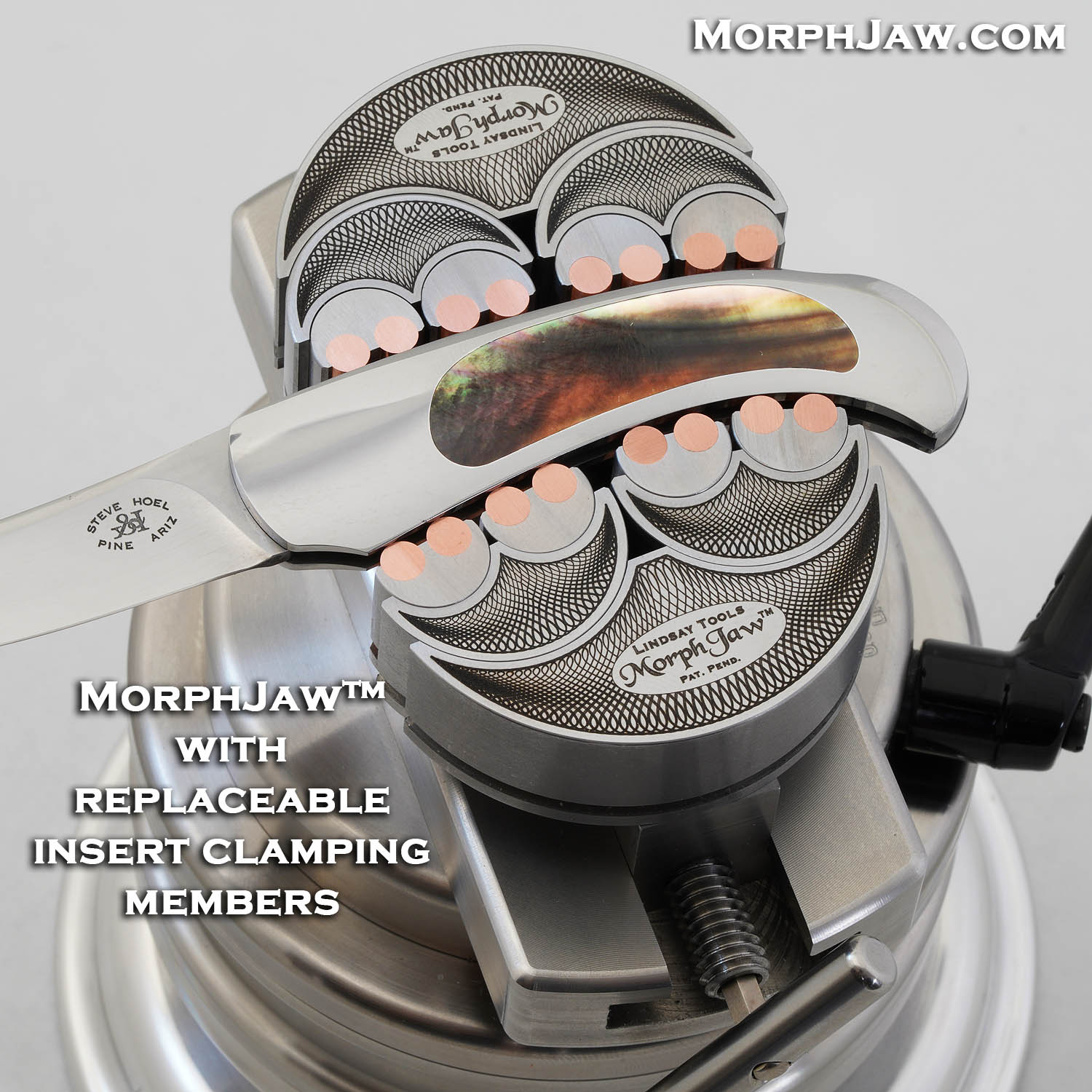

 Replaceable insert clamping members on PalmControl CamLock vise |
|

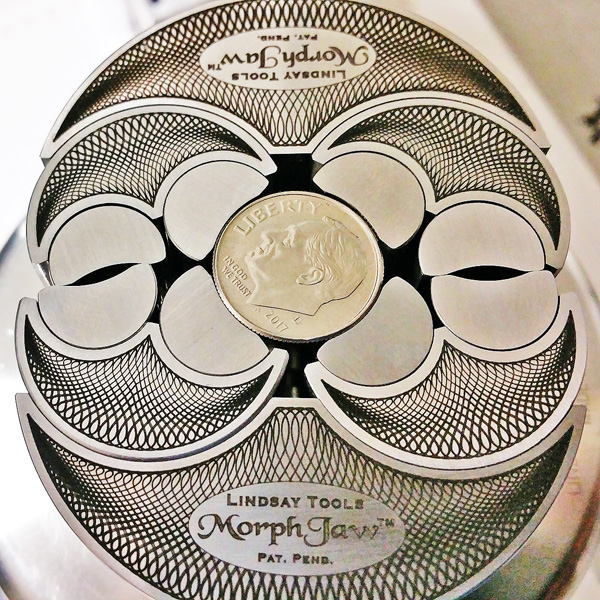

The jaws are modular for different sizes of a MorphVise. As pictured is the smallest. A larger member is in the works that will hold two of these in each jaw. As pictured is the ideal size for PalmControl vises and PalmControl CamLock vises. Still in the works is the larger nesting support that nest two of these MorphJaws on each side. Therefore it will require two sets of MorphJaw plus the large support nest for them. This is coming hopefully sooner than later, depending on the other orders work load that we are working though. Be sure to see
the
information below about lining jaw faces with leather if desired
further down on this page.
|

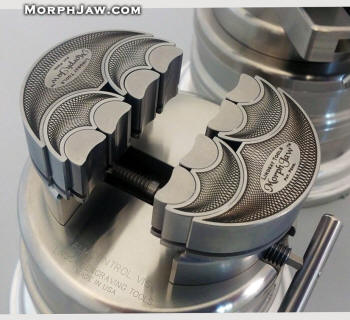

MorphJaw™ - Jaws as pictured to the left. Vise
NOT included. $599 It is possible MorphJaw can work on other makes of vises but for now they are recommend for owners of PalmControl vises PalmControl CamLock vises, Goliath vises and CamLock Goliath vises.
MorphVise™
- Jaws with a PalmControl vise -
Two Special Screw Pins for attaching MorphJaw
to a PalmControl CamLock
vise -
$44 If you have sent a down payment at an earlier date then the price is less by the amount of that down payment. If this is the case for you please use the order button above to order and write a note during checkout in the place provided for notes that you have sent a down payment earlier. If you have the order number from the down payment include it as it will be helpful. When we see your new order at the full amount we will refund the amount of your earlier down payment. |
 PalmControl

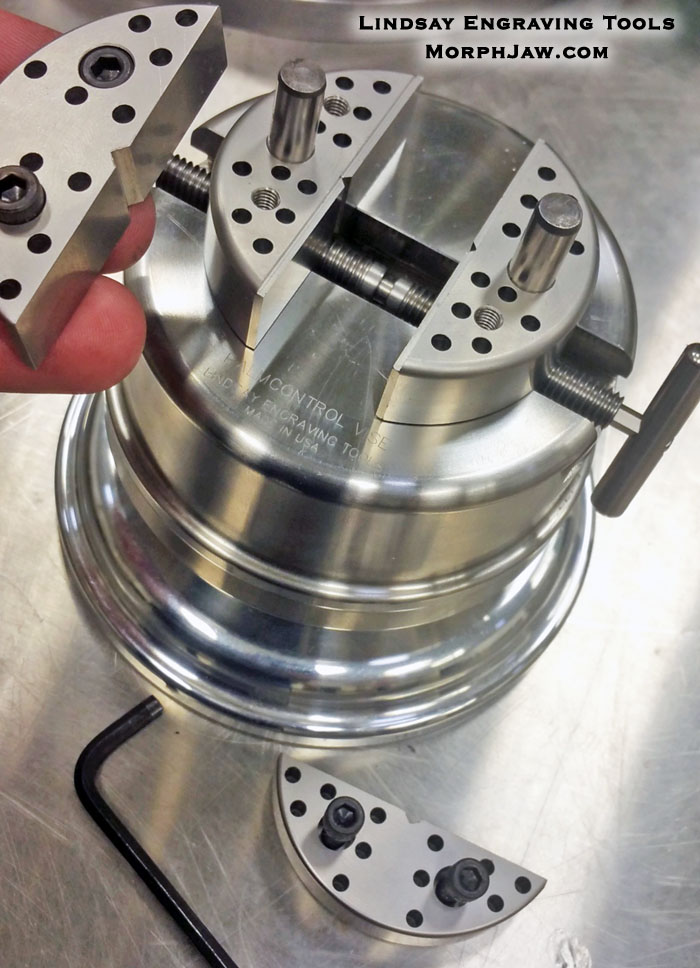

vise - MorphVise informationFor fitting your PalmControl vise the pin distance needs to be the correct height. Check your vise's pin height by first removing the pin plates from the top of the jaws by removing the two screws, then lift up to remove. Under each pin plate you will find a pin. Insert this pin in the top of the jaw and measure its height. The pin height needed for holding a MorphJaw is between 5/8" and 1/2". If yours is over or under this length order replacement pins the length needed to make the height requirement. See two examples below. |
If you will be using the MorphJaw on a PalmControl vise check your current pin height and order replacement pins if needed.
Check your pin fit. Your pin should be a close slip fit (no force) into the hole of the vise jaw. |
|

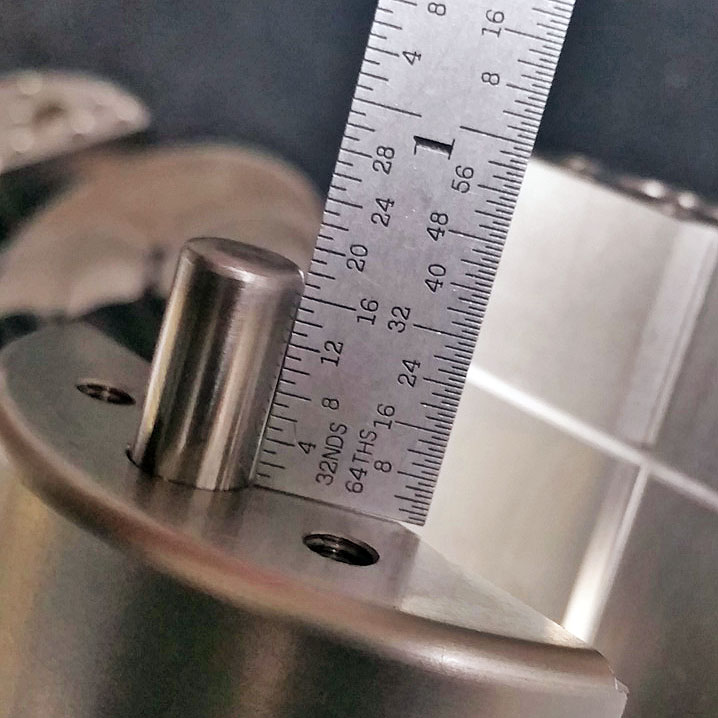

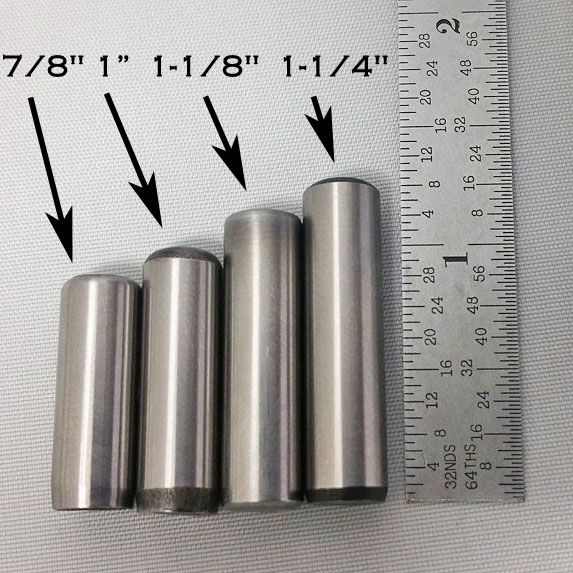

 This pin is sticking out under 1/2" high therefore longer pins need to be ordered. Remove the pin and measure. For example this one is 1" long, so the next size that needs to be ordered is. 1-1/8". |

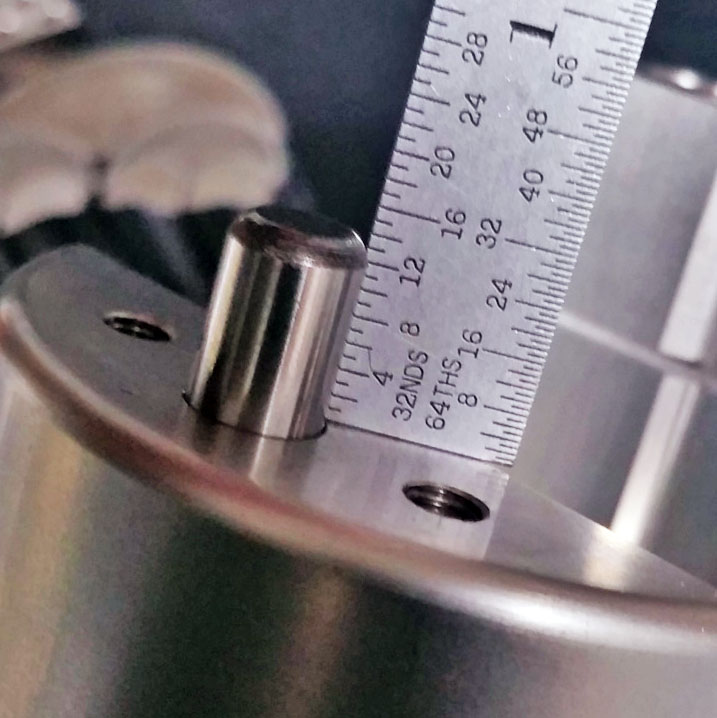

 This pin measures just right since it measures between 5/8" and 1/2", therefore no replacement pins are needed. If yours happens to measure right at 1/2" it is recommend to go a head and order the next size up so that the height is 5/8". |
|
|
Change or replace the front most clamping members with this special
front row jaws. The inserts are a common dowel size to allow
changing by the user. Insert Material Examples: plastic,
wood-composite, brass, aluminum, steel. Shown below are with
copper inserts. MorphJaw™ with front row replaceable insert option members Inserts material examples: plastic, copper, wood-composite, brass, aluminum, steel

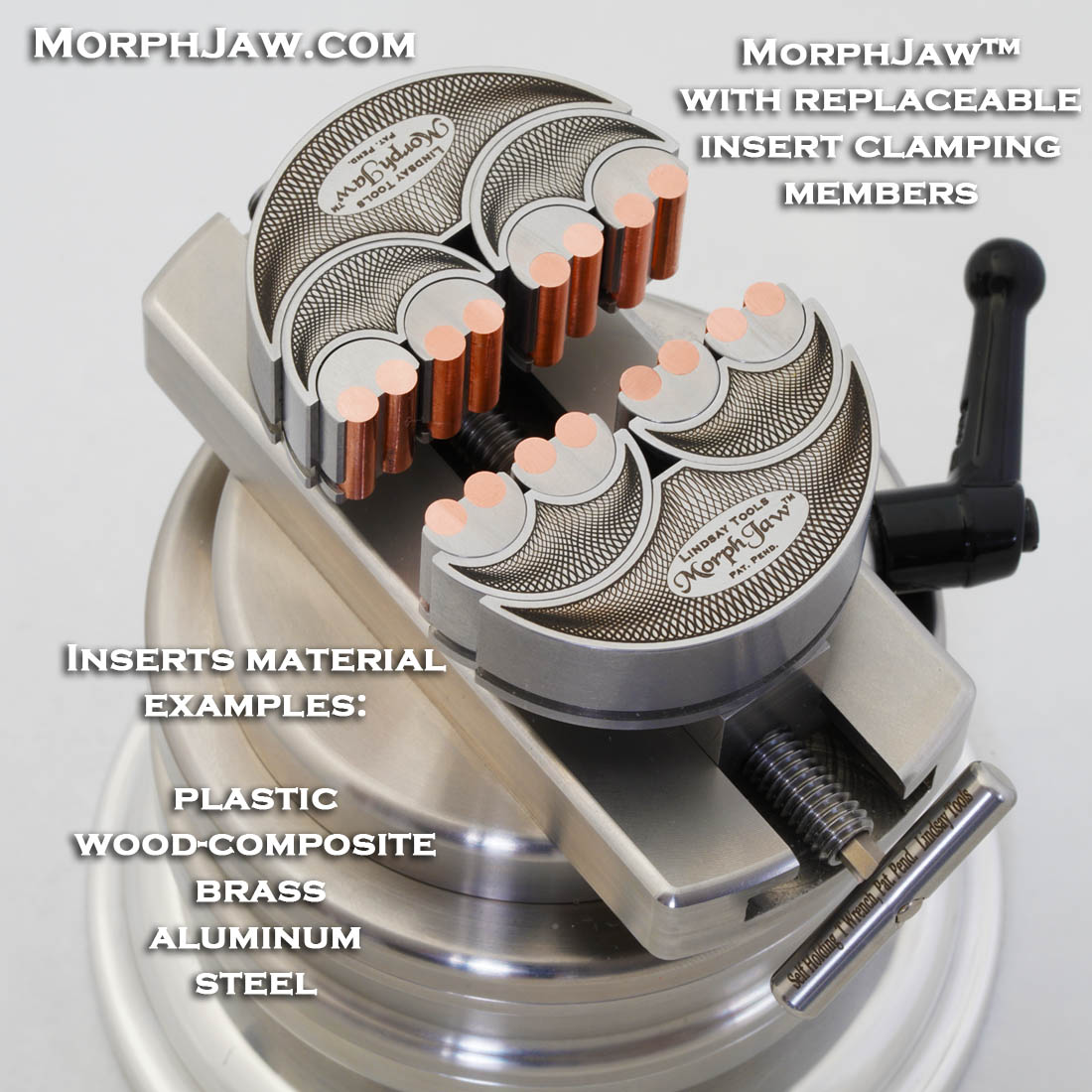

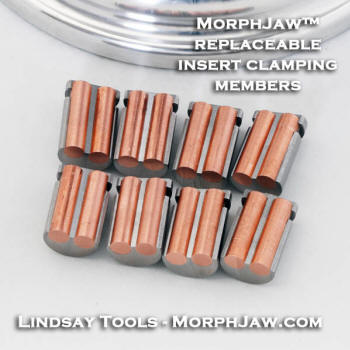

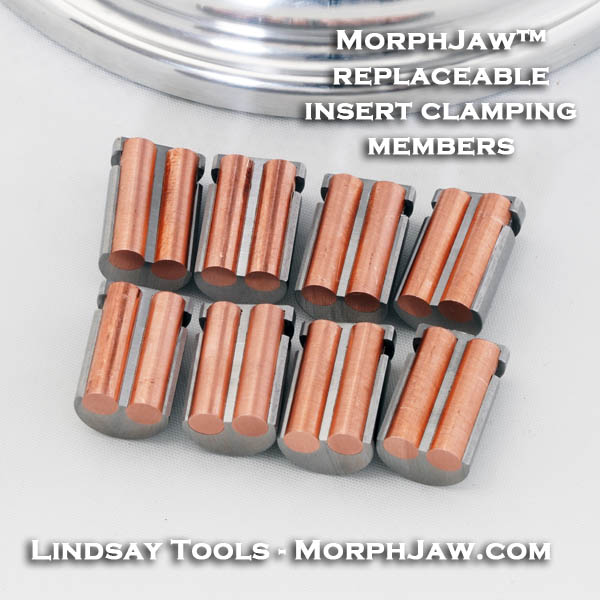

MorphJaw™ replaceable insert clamping members |
|
 Copper inserts pictured |
 |
|
Depending on what you are holding you may want to line the faces of
the jaws with leather. The steps so that you can do this
yourself are included with jaws. A shammy works well for the
leather from your local hardware store. Or you may order the
leather here.
Leather remnants that are large enough to line the |
||
 |

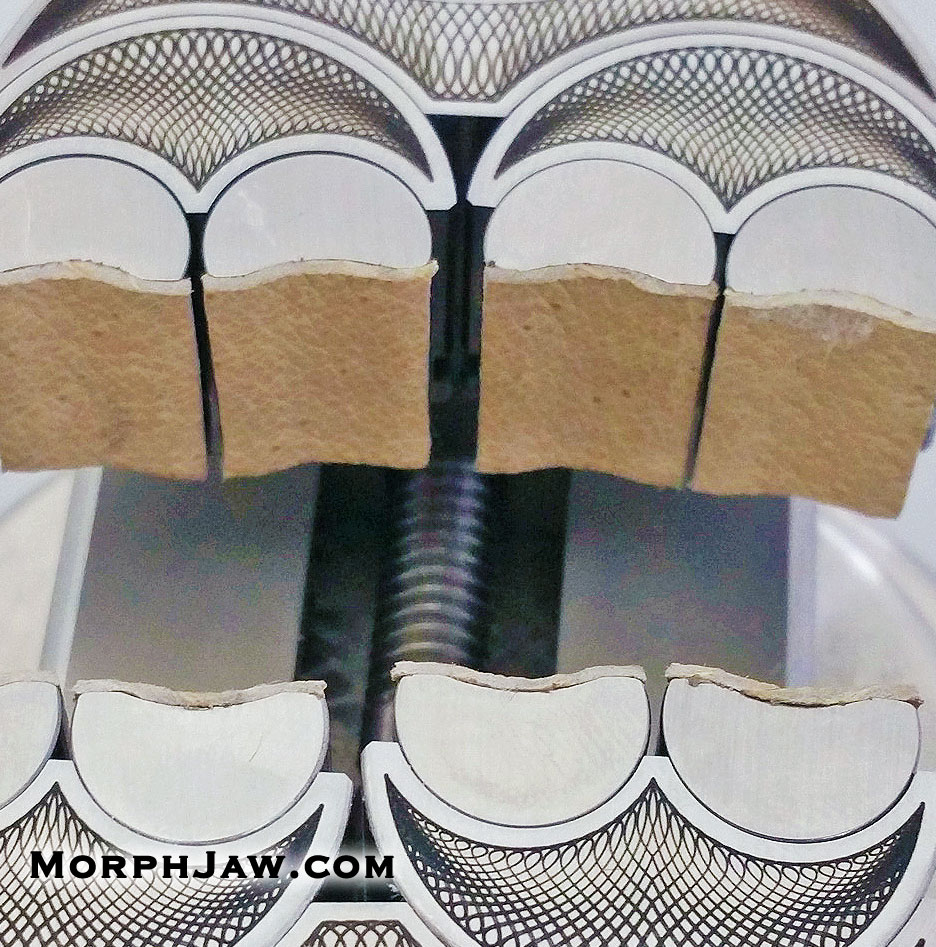

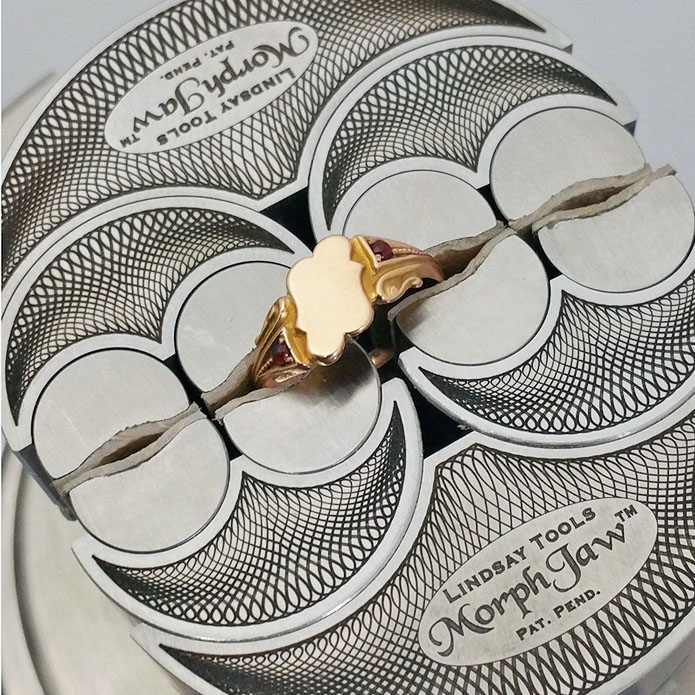

Holding a ring with leather faces to help prevent marring. |
|
